Container Descriptions And Dimensions
For Individual Shipping and Storage Containers

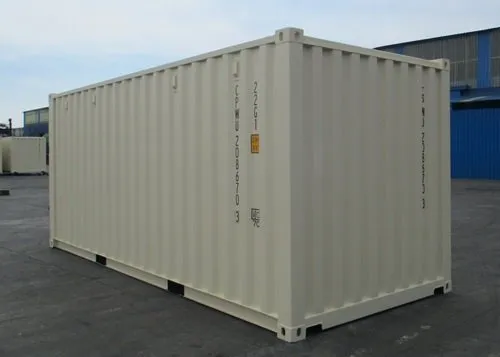

20' Standard NEW
NEW containers are available with double doors one end, or double doors both ends. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 19' 10 1/2" | 19' 4 1/4" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 8' 6" | 7' 9 7/8" | |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 4,850 lb. | 62,350 lb. | 67,200 lb. | 1,166 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

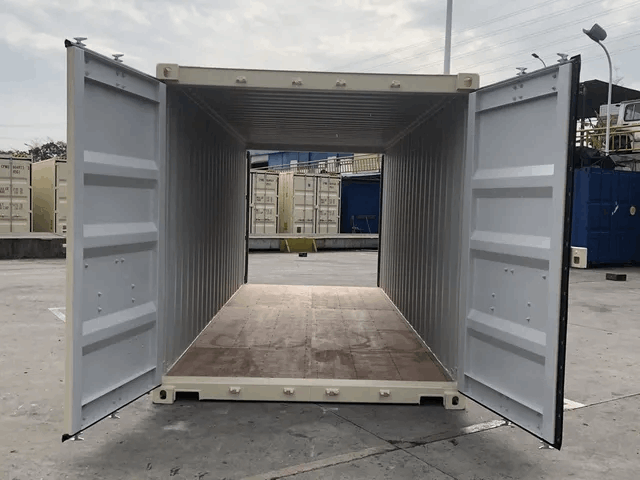

20' Standard Double Door –
Both Ends NEW
Containers with double doors, both ends, in all size variances, are only available as NEW containers. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 19' 10 1/2'' | 19' 4 1/4" | |
| Width | 8' 0" | 7' 8 1/2" | 7' 8 1/8" |
| Height | 8' 6" | 7' 9 7/8" | 7' 5 5/8" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 4,850 lb. | 62,350 lb. | 67,200 lb. | 1,166 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

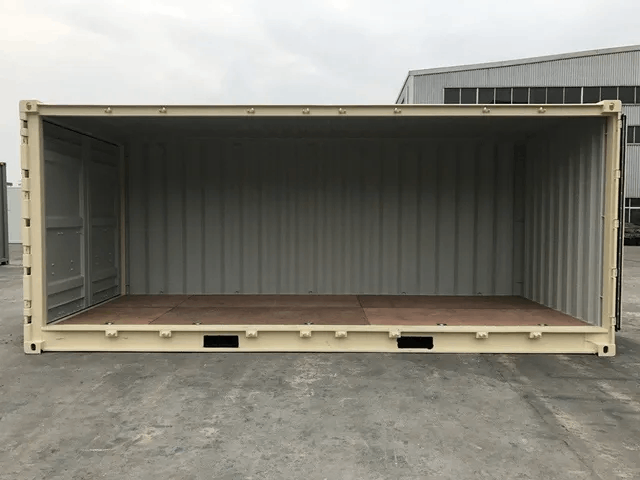

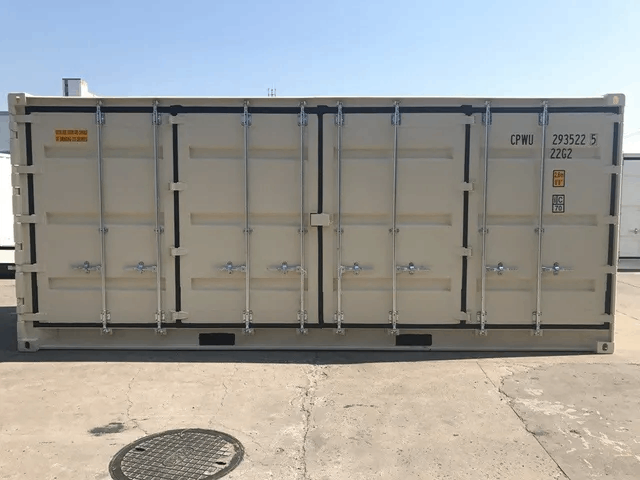

20' Standard Open Side NEW
The Open Side shipping container gives you multiple access points through either its standard double doors, one end, to its full access four (4) bifold doors, one side. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 19' 10 1/2" | 19' 4 1/4" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 8' 6" | 7' 9 7/8" | 7’ 5 5/8” |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 4,850 lb. | 62,350 lb. | 67,200 lb. | 1,166 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

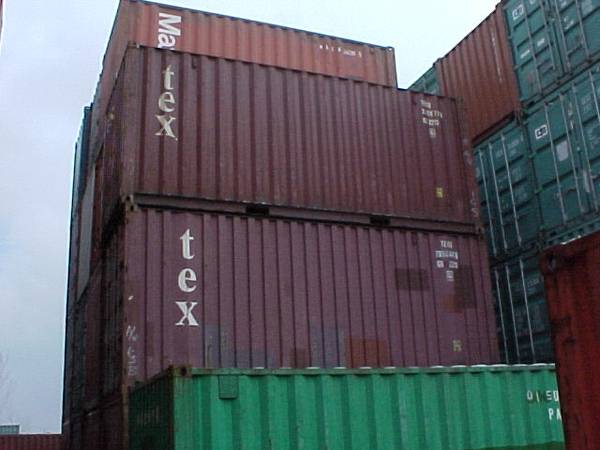

20' Standard USED -
Cargo Worthy
All USED containers have double doors, one end only. Cargo Worthy grade containers meet all of the manufacturer’s requirements as listed below. Wind / Water Tight grade containers meet the container dimensions listed below.

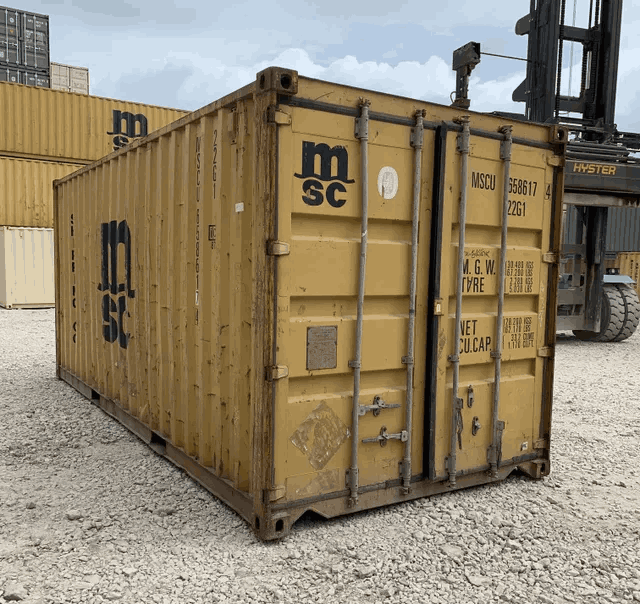

20' Standard USED -
Wind / Water Tight
All USED containers have double doors, one end only. Cargo Worthy grade containers meet all of the manufacturer’s requirements as listed below. Wind / Water Tight grade containers meet the container dimensions listed below.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 19' 10 1/2" | 19' 4 1/4" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 8' 6" | 7' 9 7/8" | |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 4,850 lb. | 62,350 lb. | 67,200 lb. | 1,166 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

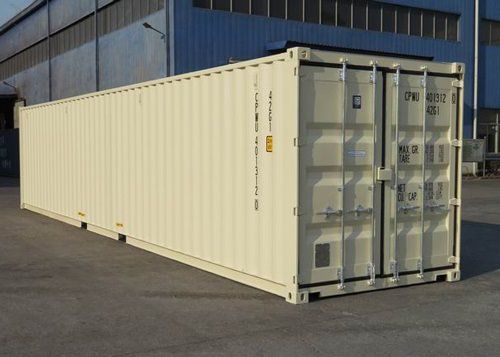

40' Standard NEW
NEW containers are available with double doors one end, or double doors both ends. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 8' 6" | 7' 9 7/8" | 7' 5 5/8" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,168 lb | 63,482 lb | 71,650 lb | 2,377 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb | 16,800 lb. | 16,000 lb. |

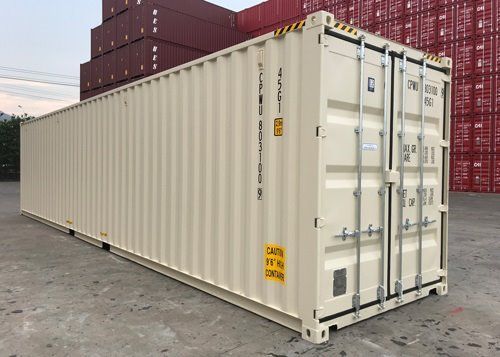

40' High Cube NEW
NEW containers are available with double doors one end, or double doors both ends. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 9' 6" | 8' 9 7/8" | 8' 5 ½" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,587 lb. | 63,063 lb. | 71,650 lb. | 2,681ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

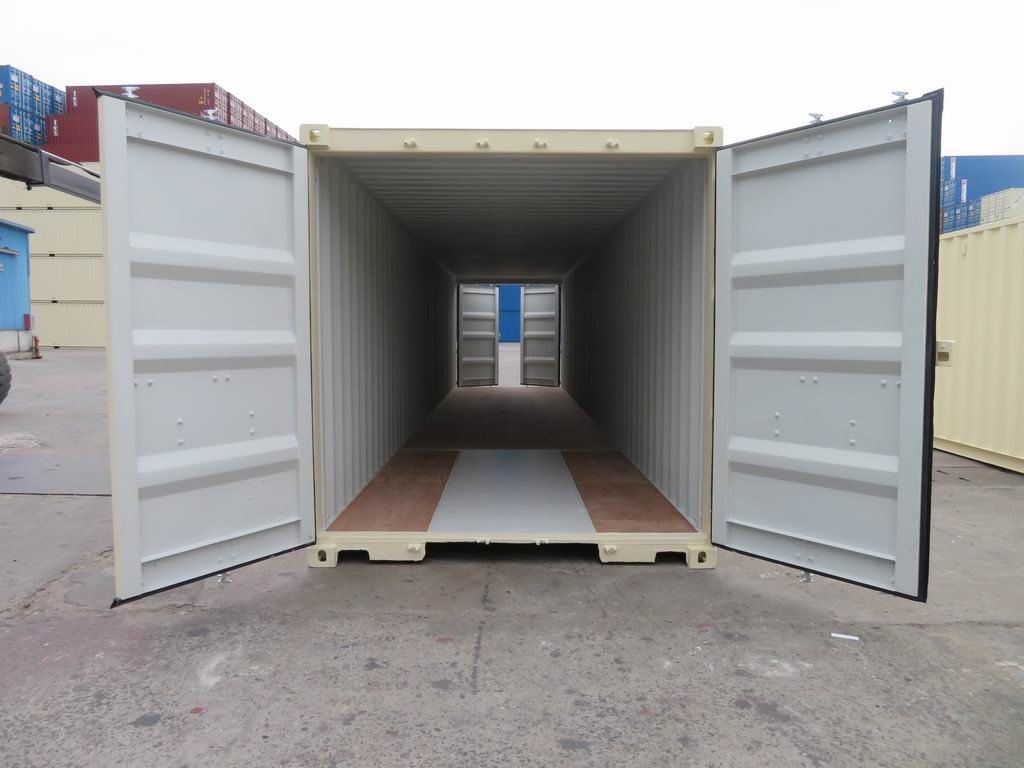

40' Standard Double Door –
Both Ends NEW
Containers with double doors, both ends, in all size variances, are only available as NEW containers. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 8' 6" | 7' 9 7/8" | 7' 5 5/8" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,168 lb. | 63,482 lb. | 71,650 lb. | 2,377 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

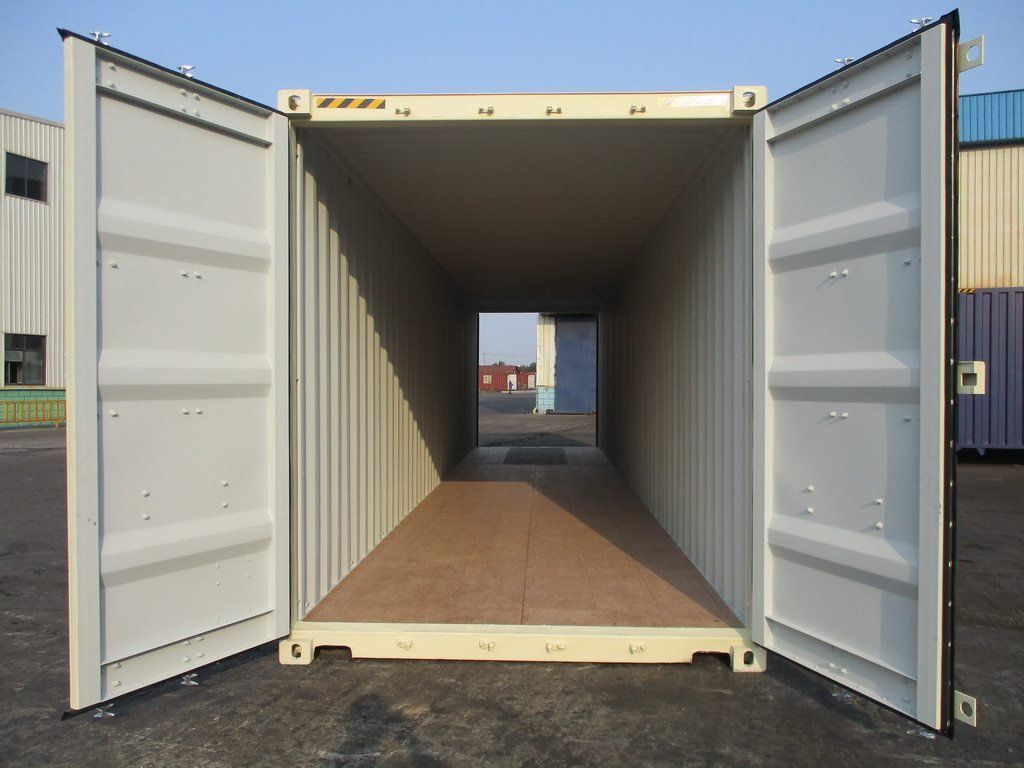

40' High Cube Double Door –
Both Ends NEW
NEW containers are available with double doors one end, or double doors both ends. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 9' 6" | 8' 9 7/8" | 8' 5 ½" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,587 lb. | 63,063 lb. | 71,650 lb. | 2,681ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

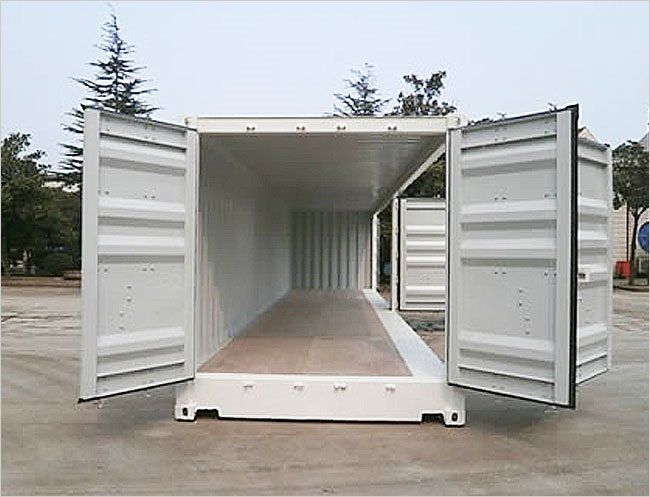

40' Standard Open Side NEW
The Open Side shipping container gives you multiple access points through either its standard double doors, one end, to its full access four (4) bifold doors, one side. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 8' 6" | 7' 9 7/8" | 7' 5 5/8" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,168 lb. | 63,482 lb. | 71,650 lb. | 2,377 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

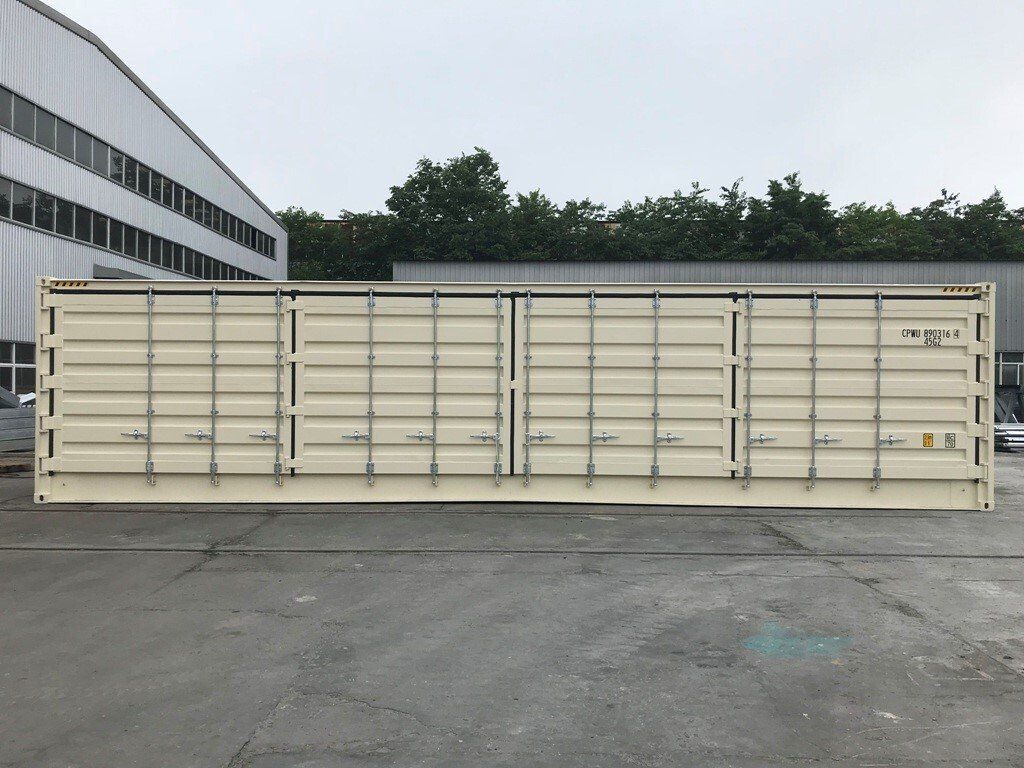

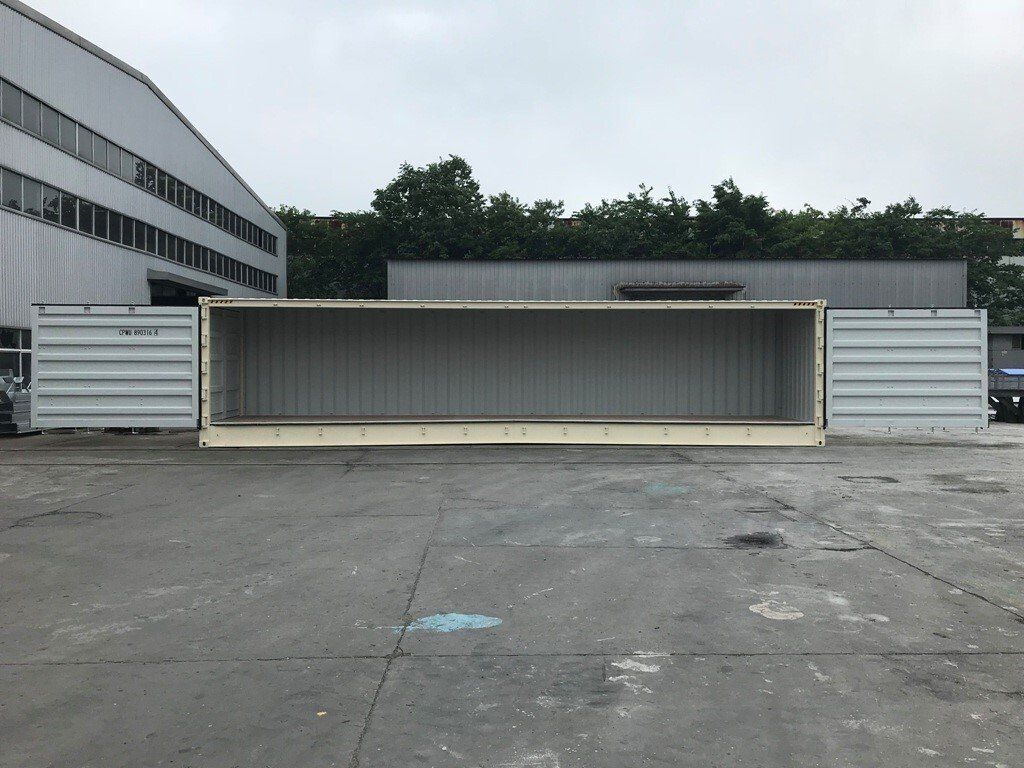

40' High Cube Open Side NEW
The Open Side shipping container gives you multiple access points through either its standard double doors, one end, to its full access four (4) bifold doors, one side. Most NEW containers include exterior lock boxes.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 9' 6" | 8' 9 7/8" | 8' 5 ½" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,587 lb. | 63,063 lb. | 71,650 lb. | 2,681ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

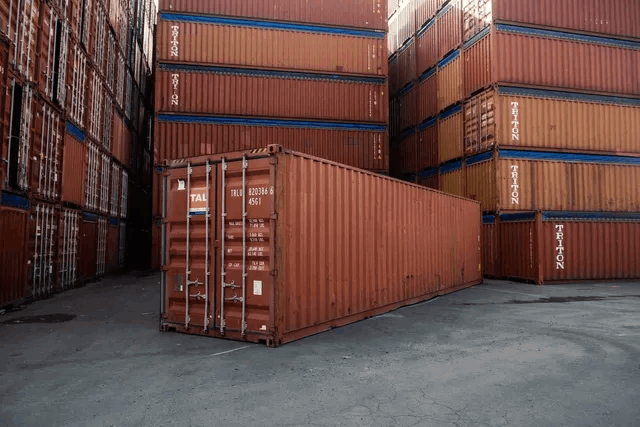

40' Standard USED -
Cargo Worthy
All USED containers have double doors, one end only. Cargo Worthy grade containers meet all of the manufacturer’s requirements as listed below. Wind / Water Tight grade containers meet the container dimensions listed below.

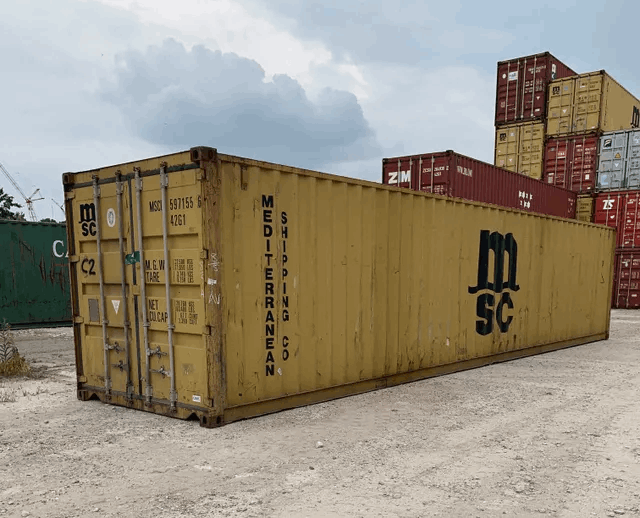

40' Standard USED -
Wind / Water Tight
All USED containers have double doors, one end only. Cargo Worthy grade containers meet all of the manufacturer’s requirements as listed below. Wind / Water Tight grade containers meet the container dimensions listed below.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 8' 6" | 8' 9 7/8" | 7' 5 5/8" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,168 lb. | 63,482 lb. | 71,650 lb. | 2,377 ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

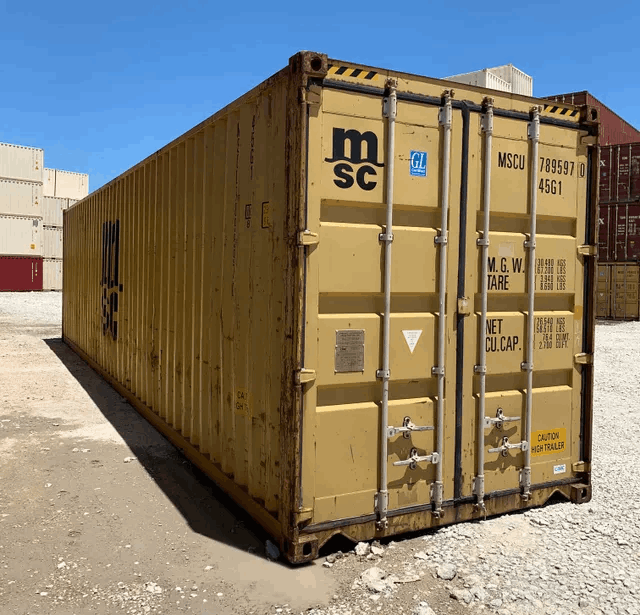

40' High Cube USED
All USED containers have double doors, one end only. Cargo Worthy grade containers meet all of the manufacturer’s requirements as listed below. Wind / Water Tight grade containers meet the container dimensions listed below.
| Dimensions | External Size | Internal Size | Door Opening |
|---|---|---|---|
| Length | 40' 0" | 39' 5 ½" | |
| Width | 8' 0" | 7' 8 ½" | 7' 8 1/8" |
| Height | 9' 6" | 8' 9 7/8" | 8' 5 ½" |
| Ratings: | |||
| Tare Weight | Payload | Max. gross | Cube Capacity |
| 8,587 lb. | 63,063 lb. | 71,650 lb. | 2,681ft.3 |
| Test Loads: | |||
| Stacking | Transverse Racking | Longitudinal Racking | Floor Strength |
| 214,290 lb. | 33,600 lb. | 16,800 lb. | 16,000 lb. |

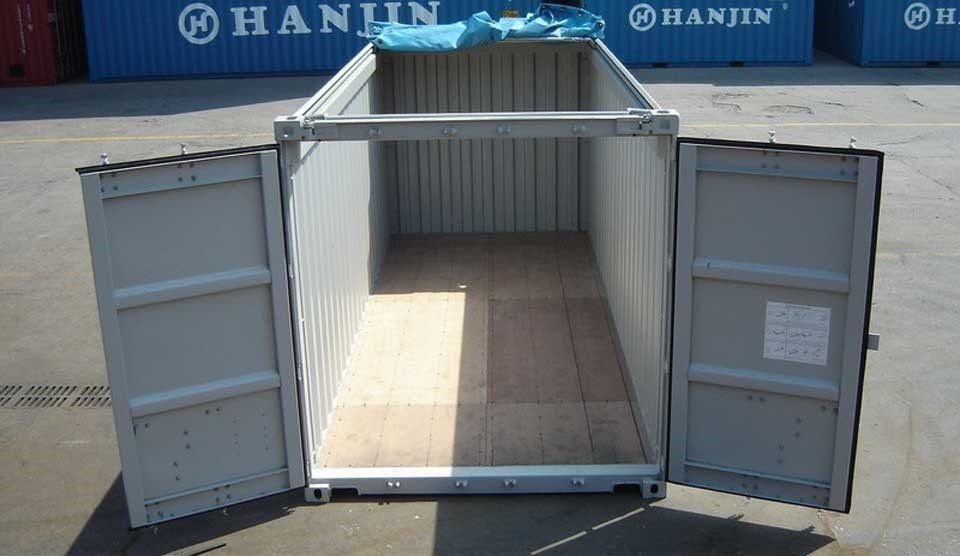

20' and 40' Open Top USED
The Open Top shipping container has an open top covered by a removable waterproof tarp. Open Top containers normally also have double doors one end.
